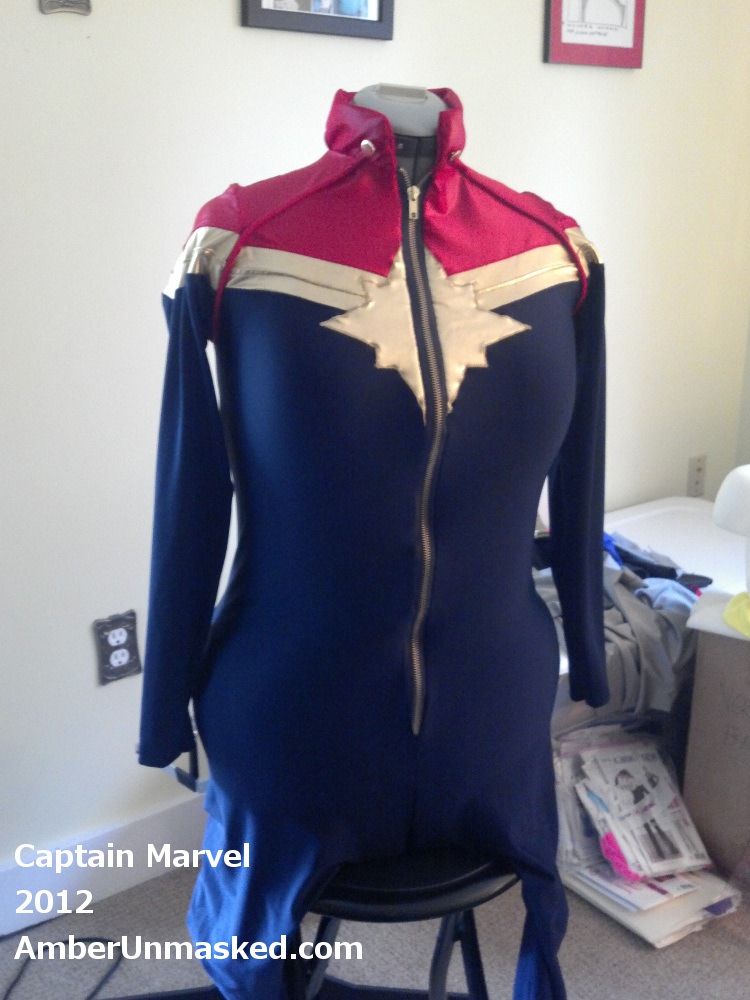

AMBER LOVE 02-OCT-2012 I started this CAPTAIN MARVEL costume in late August and finished in mid-September. It’s one of the few commissions I agreed to take this year. I love this design but it contained some elements I had never done before.

The first concern I had was the raglan sleeves and the second was the piping detail that highlighted those sleeves. Instead of drafting pure raglan sleeves, I used a combination of a regular sleeve with a shoulder piece that connected from upper chest to the upper back.

I had bought cotton piping but only as a backup plan. I wanted the piping to match the wetlook red so I was forced to make my own piping. This is done by buying the inside cord, which Fabricland in Plainfield, New Jersey carries in regular and elastic so I chose the elastic; then using a zipper foot to get as close as possible to the cord while stitching the fabric together into a casing (if you don’t have a piping foot).

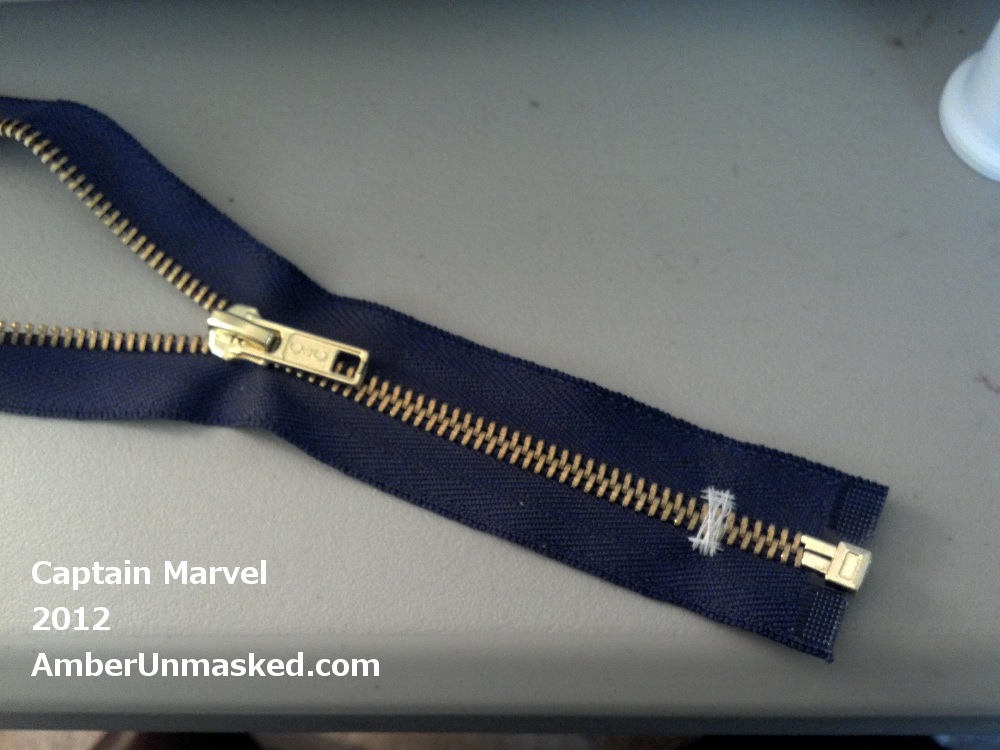

As with most superhero styles, I began with KWIK SEW 3052 figure skating costume pattern. The modifications are explained below. You may also want some 3/4″ double-stick hemming tape. It’s very handy to put things in place when straight pins won’t do. The zipper was not easy to find. My notes below explain how I resolved this.


Fabric from

1 yard of 1208 metallic gold
3 yards of 753 milliskin navy
2 yards of 764 wetlook red

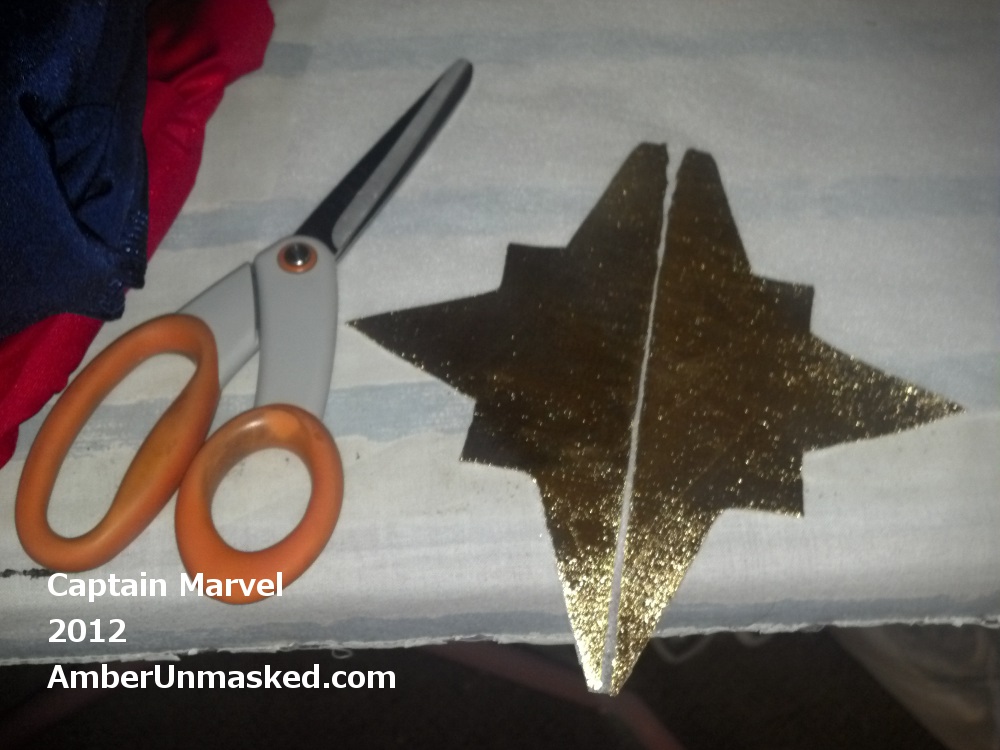

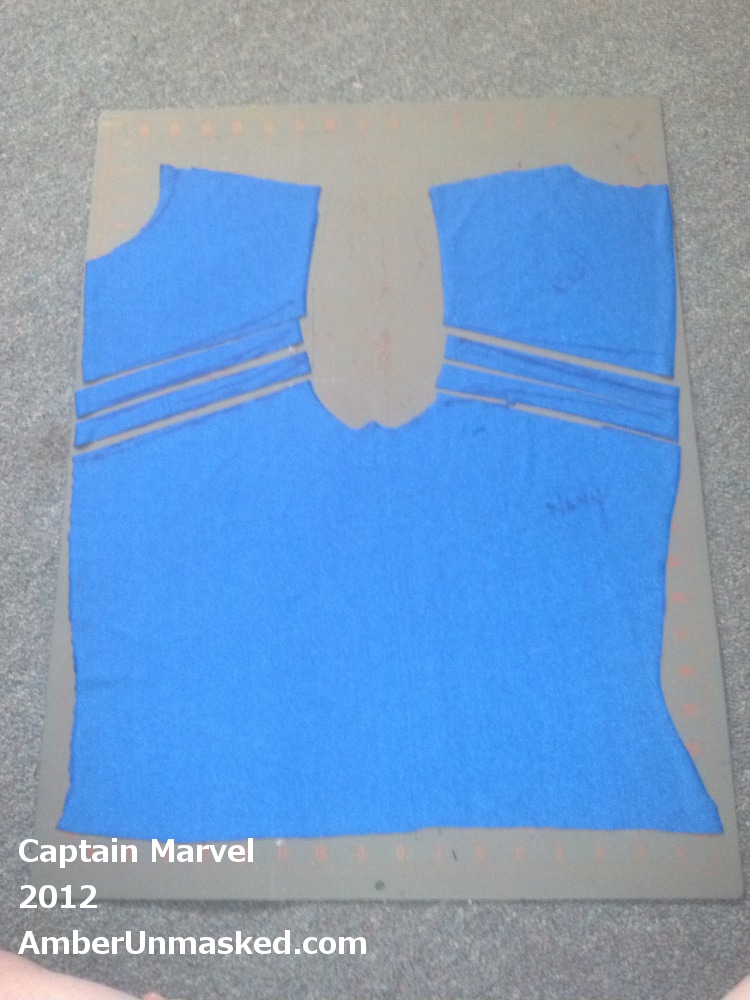

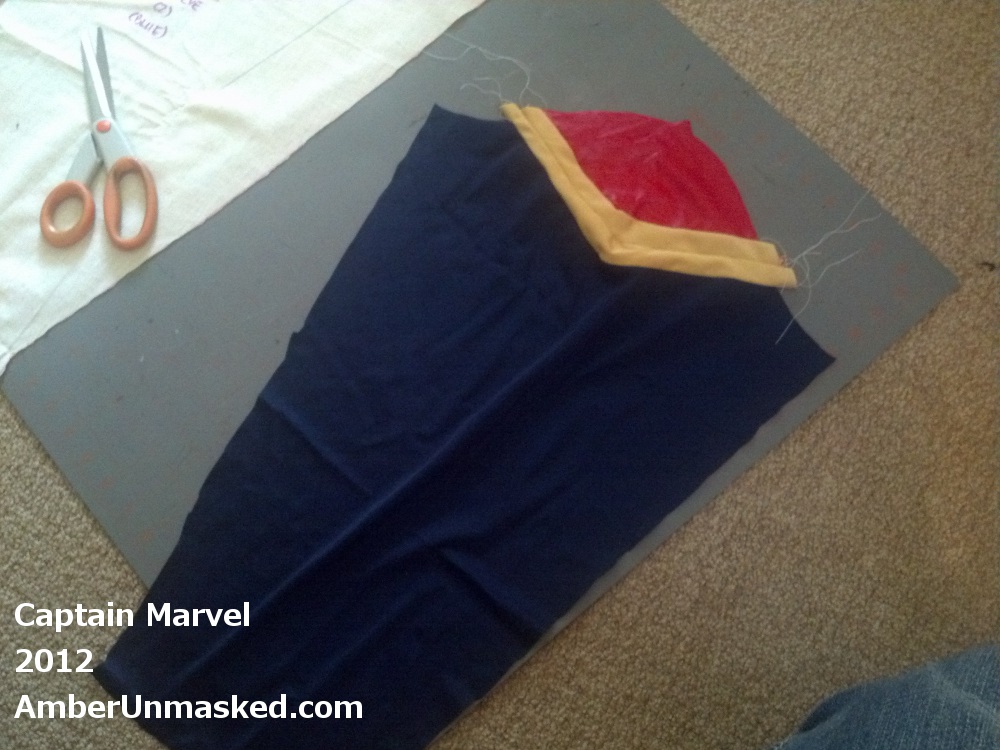

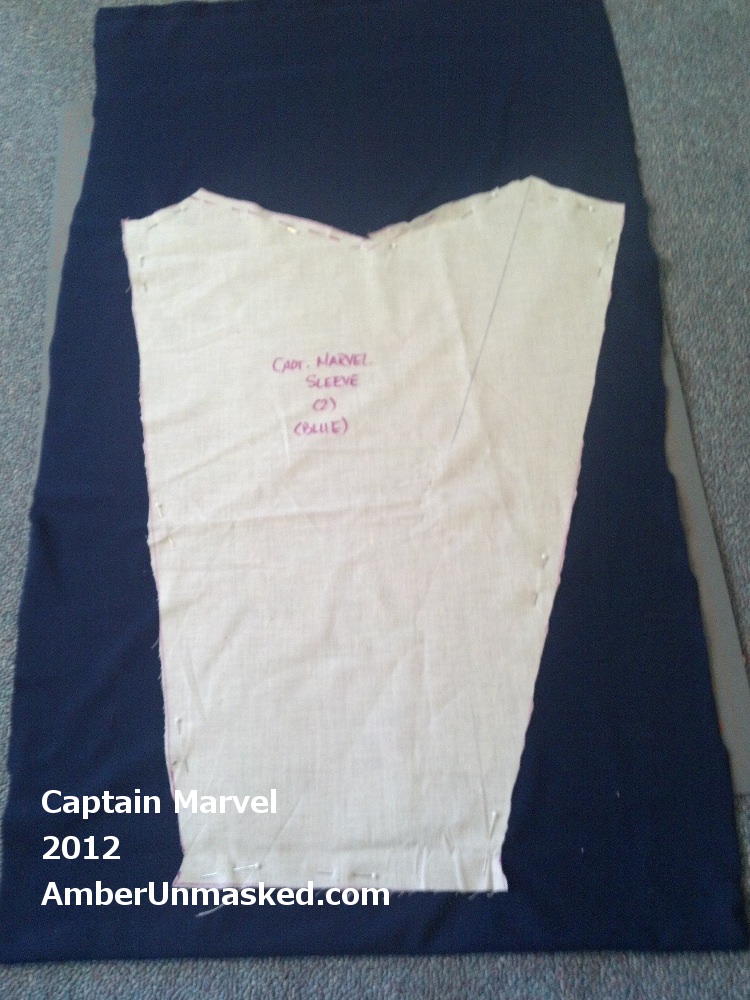

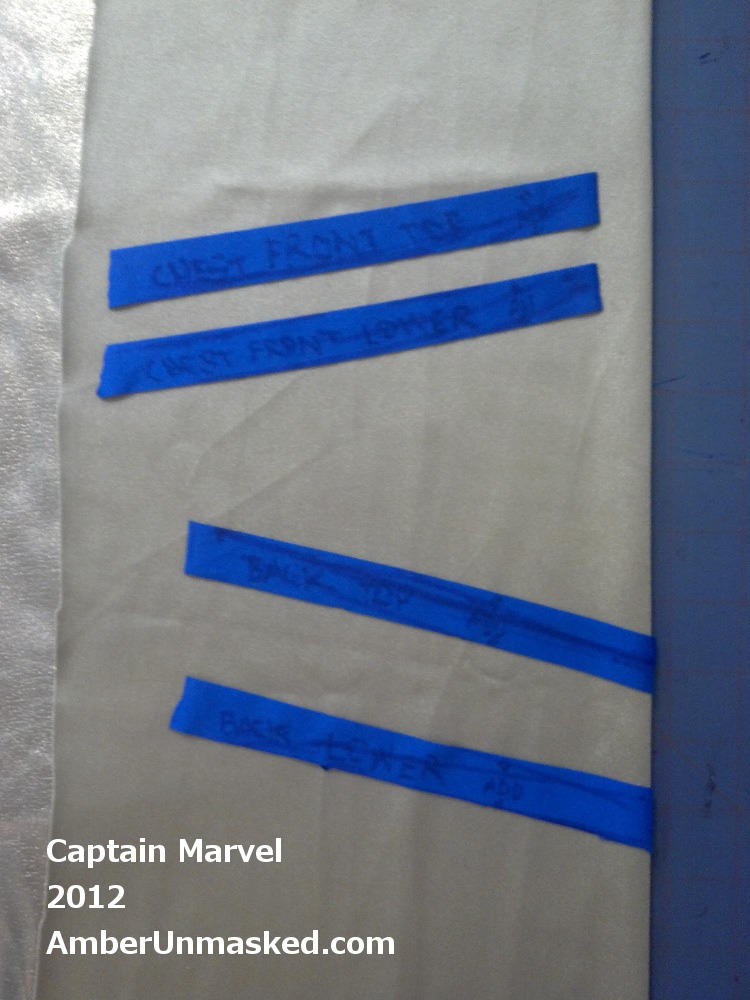

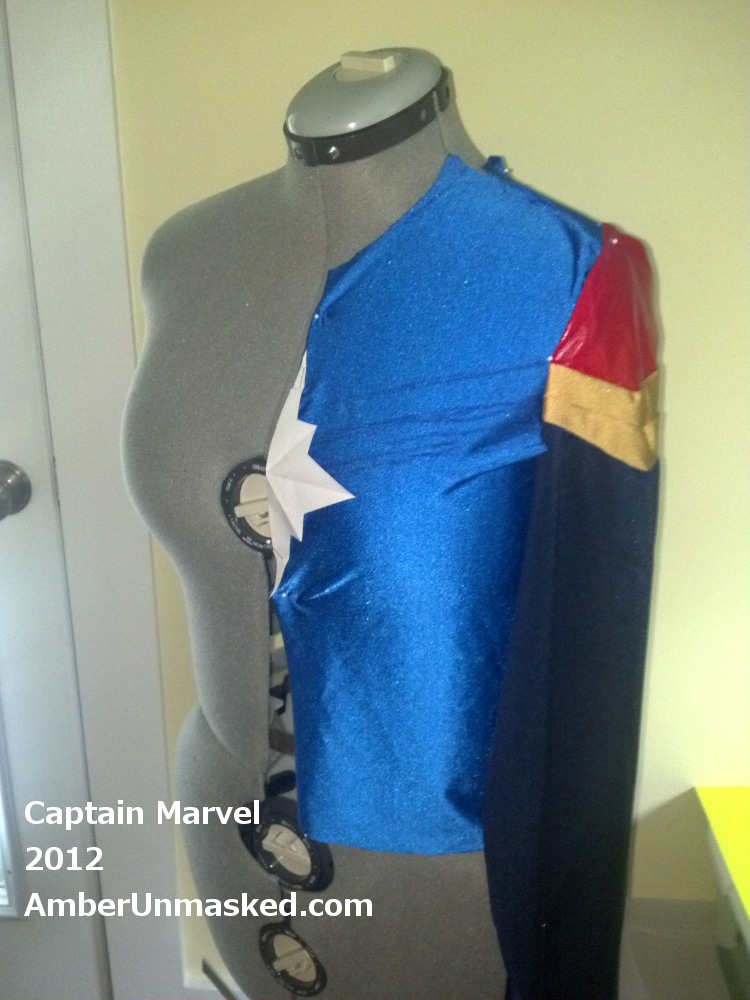

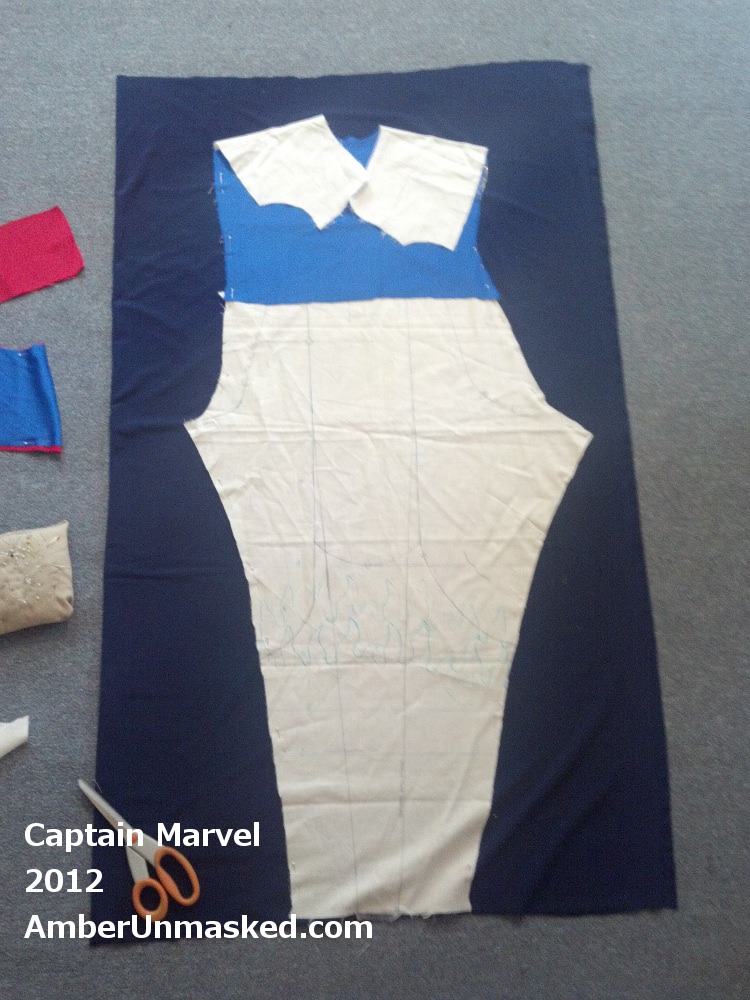

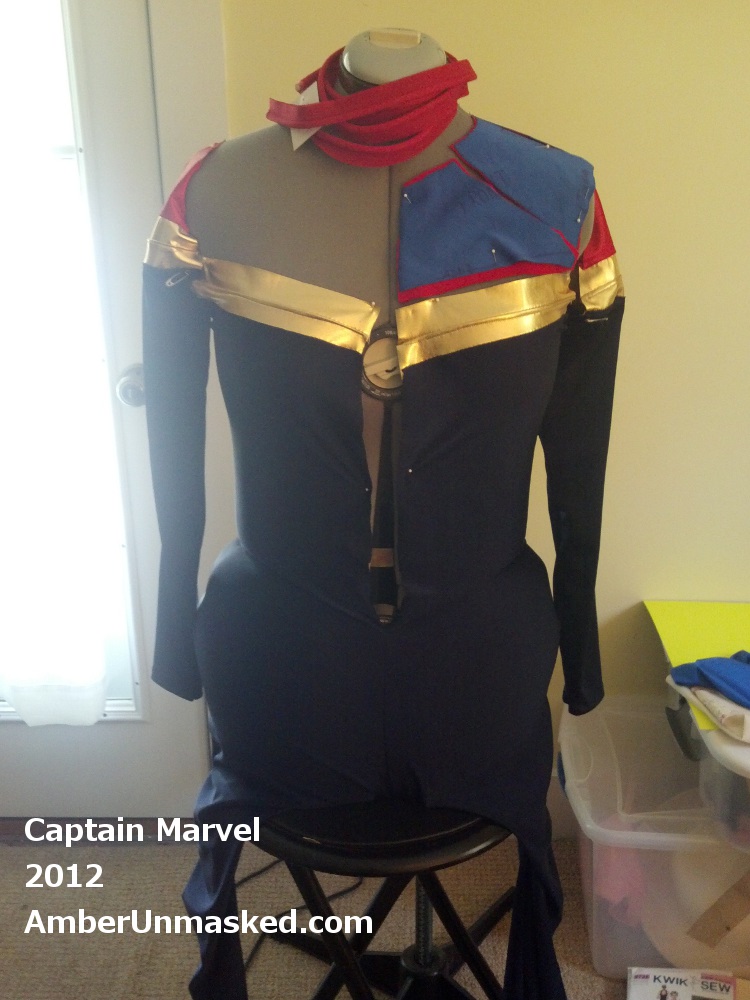

captain marvel cosplayFor whatever reason, when I drafted the pattern, I started with the sleeve. I had some leftover scraps in about the right colors as the final would be so I used scraps to create a sleeve mock up.captain marvel cosplayI pinned the sleeve to my dressform’s shoulder; pinned more scrap spandex to the front and back to draft where the color blocking was required (the gold stripes, the red shoulder girdle, the blue suit)captain marvel cosplayThe torso’s main pattern pieces were cut up. The key is to remember to leave seam allowance on the sides that will attach where the original pattern had fit together.captain marvel cosplayTo make a chest logo, I drafted a design from paper. Metallic spandex can be flimsy to handle so I attach it to fusible webbing then cut out the logo design.captain marvel cosplayThe gold stripes on the back are cut on the fold of the gold; the front ones are not. because this has a front zipper.captain marvel cosplayThe main part of the sleeve is based on the commercial one but modified. See the mock up in step 1. I prefer to have sleeves done first so they are ready to insert when needed.captain marvel cosplayThe bodysuit’s main part is also mostly the commercial pattern. Just go up as far as you need to and switch the top part out for the newly drafted one.captain marvel cosplayI believe it was 1 yard of piping made using an elastic cord and the red wetlook spandex.captain marvel cosplayThe blue portion was constructed so attaching colors can begin.captain marvel cosplayThe gold was attached to the bodysuit. I constantly paused at each step to put everything back on the form and pin whatever was left.A look at the back at this point in the construction.captain marvel cosplayThe red parts of the chest and upper back were attached to the gold. The piping was the next step to move on to the shoulder then sleeves.captain marvel cosplayClose up look at sewing the piping.captain marvel cosplayThe top part of the shoulders was attached to the portions that were just piped.captain marvel cosplayA look at the shoulder construction.captain marvel cosplayTIP: I learned that the elastic cording of the piping kept slipping out of the casing as I sewed panels together. I had to painstakingly fish it back through then hold the ends in place with safety pins until the last possible minute when the collar was attached.captain marvel cosplayThe logo was attached. The zipper would have to run through it. To help get the logo to stay in the right place, I used thin strips of double-stick hem tape. This contains a lot of corners and turning so all the pins can snag and stab. I used less because of the tap. I went around the edges with a zig-zag stitch then over them with a tighter zig-zag more like a satin stitch except on the edge that would have the zipper.captain marvel cosplayHere’s the problem with the zipper: I couldn’t find a closed navy zipper with brass colored teeth without having to special order one. I was trying to figure out the ordering process on one website and gave up. It said all zippers can be made separating or closed but in the checkout there was no option. Instead I bought a jacket zipper and made my own stopper by wrapping a lot of stitches around the teeth where I needed it to end.The fabric of the collar was attached to fusible webbing. I used disappearing ink to mark where the curve of the collar would be and then I attached the gold buttons. After cutting the curve and sewing the ends per the same instructions of the commercial pattern, mine didn’t look so curved when done. I’ve done this collar before a few time including for Rogue and it had previously worked fine.captain marvel cosplayOne edge of the collar got attached to the bodysuit. The other edge had an overlocking stitch run along it so that it would look more finished.captain marvel cosplayA look at the collar before finishing it. It’s turned inside out, right sides together; The ends get stitched; then flip it back open and hand stitch the edge with the overlocking stitches to the seam where the collar is attached to the suit. captain marvel cosplayI hated my first sash so I used the remaining red and was able to get another one out of it. The tail ends aren’t as long as they should be but you should be able to get it more correct if you don’t screw up and waste the yardage. captain marvel cosplay


I’ve made 4 different Ms. Marvel themed costumes! (Black & Gold Carol Danvers 2011, Ms. Marvel Animated 2012, Captain Marvel Carol Danvers 2012, and Dark Avenger’s Ms. Marvel 2015).

Here’s a few shots of Panda in the outfit after she made some nice adjustments. And now, it’s in the home of Lita.
